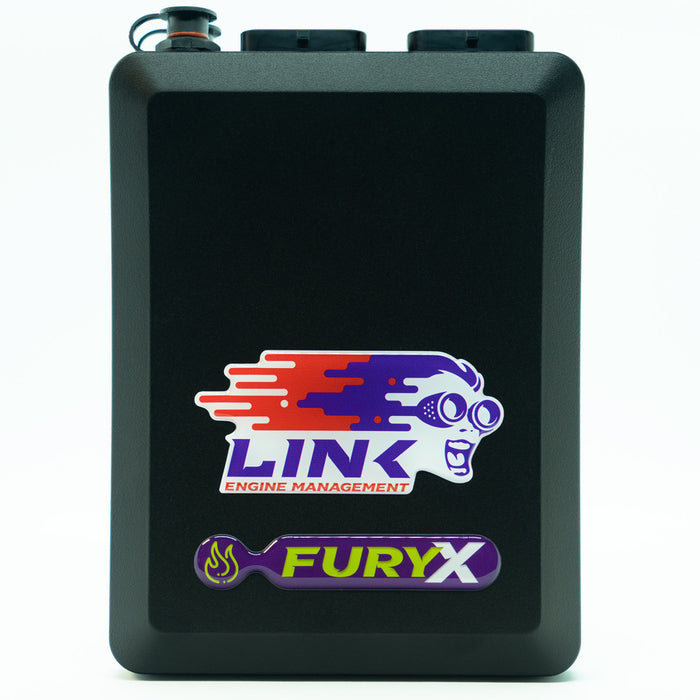

LINK G4X FURYX ECU
A premium ECU with Onboard Digital Wideband.
The FuryX is a premium ECU like the XtremeX, but with added Onboard Digital Wideband Lambda Control. Now on the G4X platform, the FuryX features a faster processor, faster communications & a huge 512 megabytes of data logging!
With 8 injector drives and 6 ignition drives, the FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark, making it an excellent choice for professional level motorsport or more demanding road car applications.
The added benefit of Onboard Digital Wideband Lambda Controller means higher accuracy of the unit, plus a simple setup.
If you are after more inputs, outputs or features, consider the Thunder ECU.
8/10* x Digital inputs
4 x Temperature inputs
9 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
1 x LSU 4.9 Wideband lambda sensor input
8 x Injection drives
6 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused fuel and ignition drives can be used as additional Aux outputs
2* x CAN bus
1x Serial (RS232) connection
1x USB tuning connection
Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
*DI 9 & 10 pins used by second CAN Bus
What's in the box?
Supplied with USB tuning cable and mounting bracket.
Requires “A” & “B” looms or “A” & “B” connector kits (not supplied).
