HKS F-Con Power Writers

We are an approved HKS dealer and able to remap all the old Blue and Gold F-Con ECUs as well as the newer iS systems

Mapping is from £350 for an NA car and £450 for a boosted one.

.

The F-CON V Pro can control up to eight injectors and D Jetro or L Jetro setups.  Injectors can be set to fire as batch, sequentially or staged. The F-CON V Pro can also read drive by wire vehicles.

Programming is done via the HKS Power Writer software; which only Certified HKS Pro Dealers have access to. The HKS Power Writer software for the F-CON V Pro has some very unique abilities to simplify setup and tuning.

Via the vehicle start up menus most Japanese import cars can be easily started by selecting the vehicles parameters (Make, Model, Engine and etc). Tuning is simplified due to the A/F Feedback control; where a target A/F value can be input and the F-CON V Pro will adjust fuel automatically. Also full data logging capabilities are built into the F-Con V Pro Power Writer software.

All major vehicle conditions including; speed, rpm, water temperature, intake temperature, timing, boost, injector duty cycle and etc can be logged to an HKS Pro Dealer's computer.

Features includes:

· 32 bit processing
· 32 x 32 map resolution
· Plug and play harness available for most vehicle applications
· F-conV Pro is transferable between vehicles. Reprogramming via a HKS Power Writer Shop will be required.
· Closed loop A/F feedback auto-mapping function
· 8 definable fuel and ignition maps
· Map sensor, throttle position and AFM bases mapping.
· Independent control of up to 8 injectors
· Twin injector adaptor for control of 12 injectors
· Low and High impedance injector drivers
· Extensive control of ignition outputs
· Primary and secondary ignition control
· Individual cylinder fuel and ignition trim
· Extensive trim functions including EGT, fuel pressure and knock.
· 2 stage user definable rev limiter. Maximum 20,000rpm rev limit.
· Full ISCV control
· Advanced ignition cut and fuel cut control

  • HKS Intercooler Honda Civic Type-R FK8
    £690.00

    HKS Intercooler Honda Civic Type-R FK8

    The HKS intercooler for the Honda Civic Type-R uses a larger size intercooler to maintain cooling performance. The newly designed 100mm wide core a...

    View full details
    £690.00

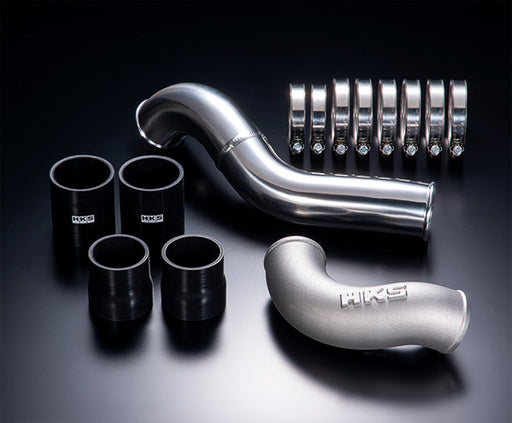

  • HKS Intercooler Hardpipe Kit - Civic Type R FK8
    £300.00

    HKS Intercooler Hardpipe Kit - Civic Type R FK8

    HKS INTERCOOLER PIPING KIT Intercooler Piping Kit Honda Civic Type-R FK8 Replacing the stock rubber intercooler inlet and outlet hoses with alumini...

    View full details
    £300.00

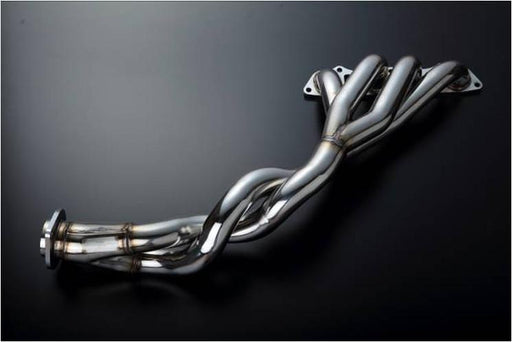

  • HKS 4-2-1 Exhaust Manifold- S2000
    £1,134.00

    HKS 4-2-1 Exhaust Manifold- S2000

    This new HKS manifold does not sacrifice the torque characteristics at low to mid engine speed range. The layout is the same as the factory 4-2-1 t...

    View full details
    £1,134.00

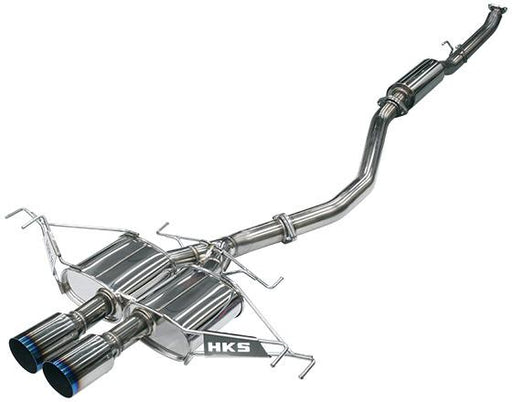

  • HKS LEGAMAX FK8 EXHAUST SYSTEM
