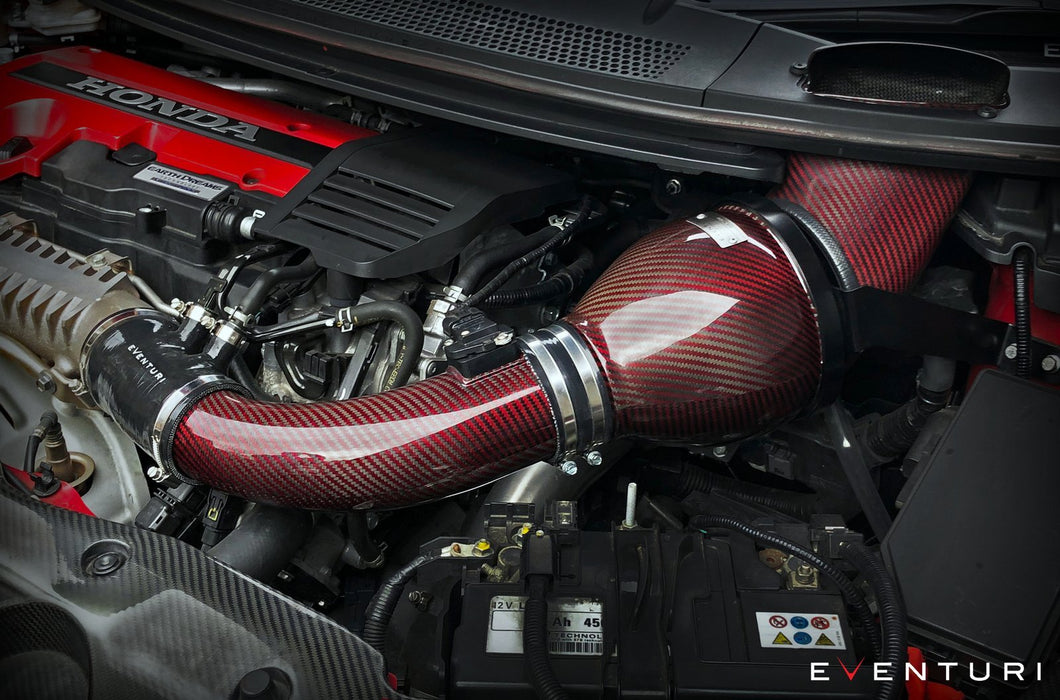

EVENTURI HONDA CIVIC FK2 TYPE R INTAKE - VERSION 2

£1,269.60

The FK2 Type R intake is the result of extensive dyno testing and flow analysis. By integrating an effective cold air feed, which the stock system lacks and coupling that with the Patent Pending Venturi housing, the intake delivers industry leading results – consistently. Available in Carbon Fibre and Red Kevlar/Carbon Hybrid.

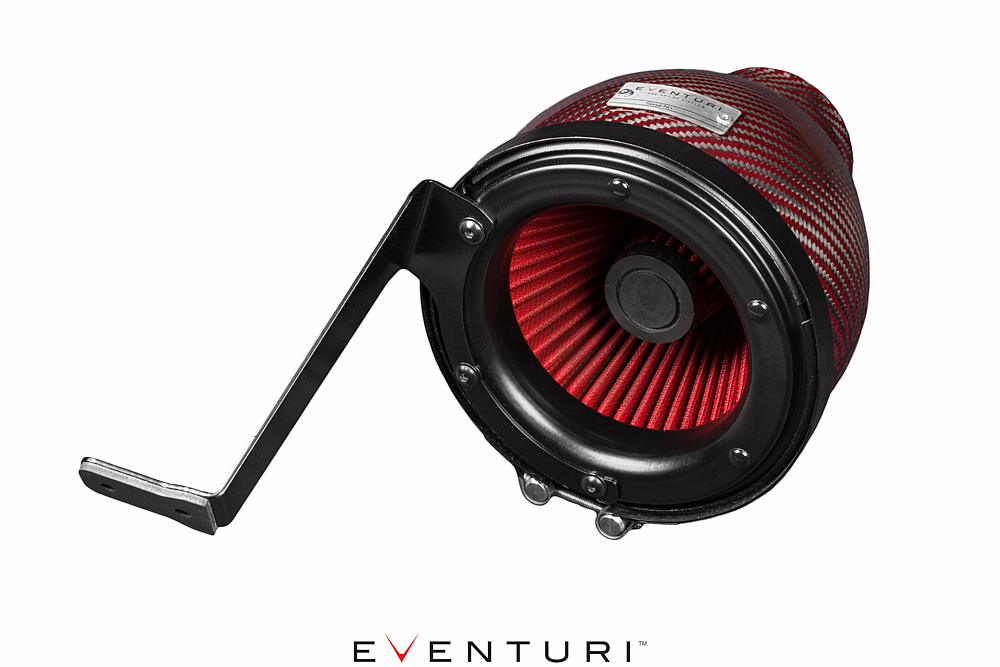

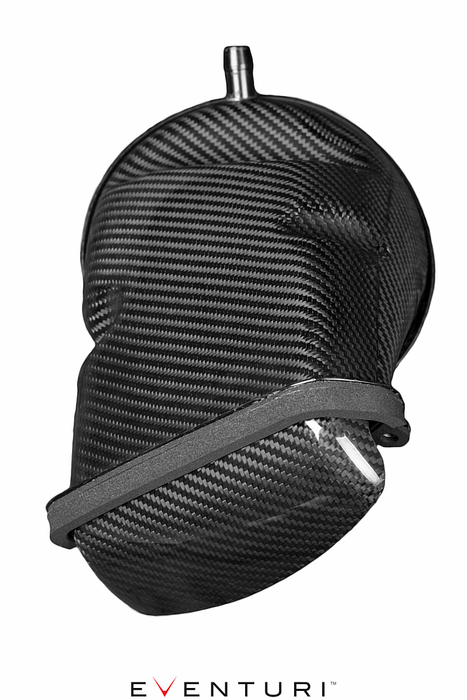

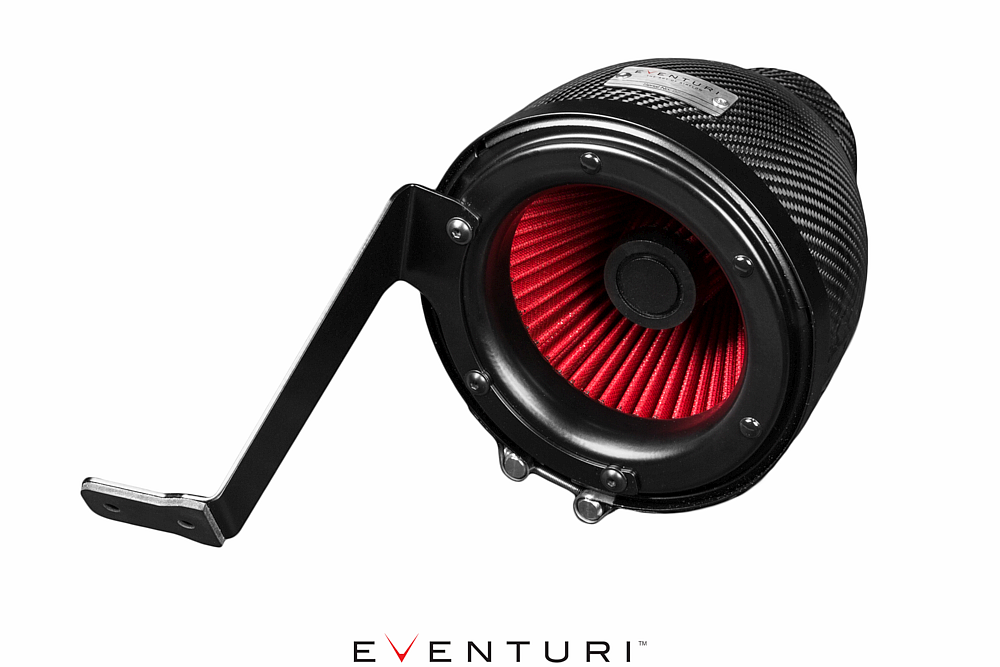

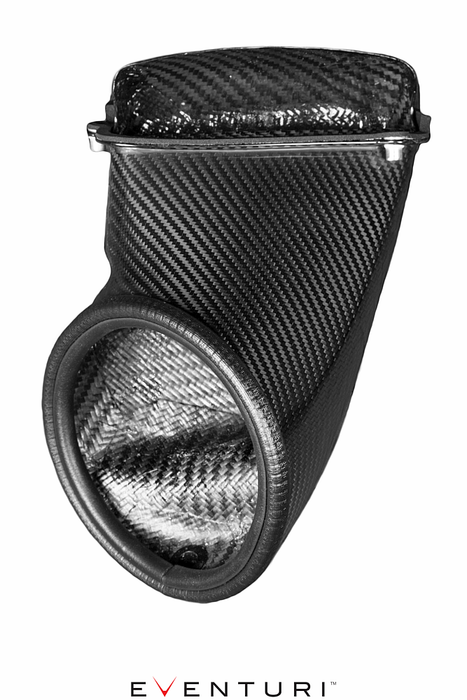

The FK2 Eventuri system uses a Patent Pending Carbon fibre Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which allows airflow to remain laminar and thus improve the turbo efficiency.

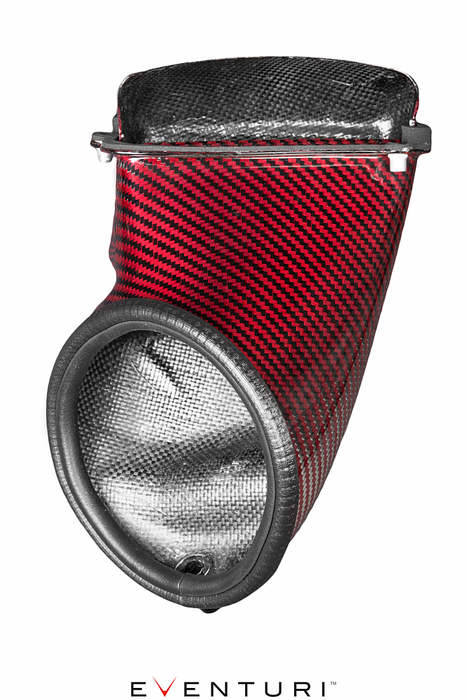

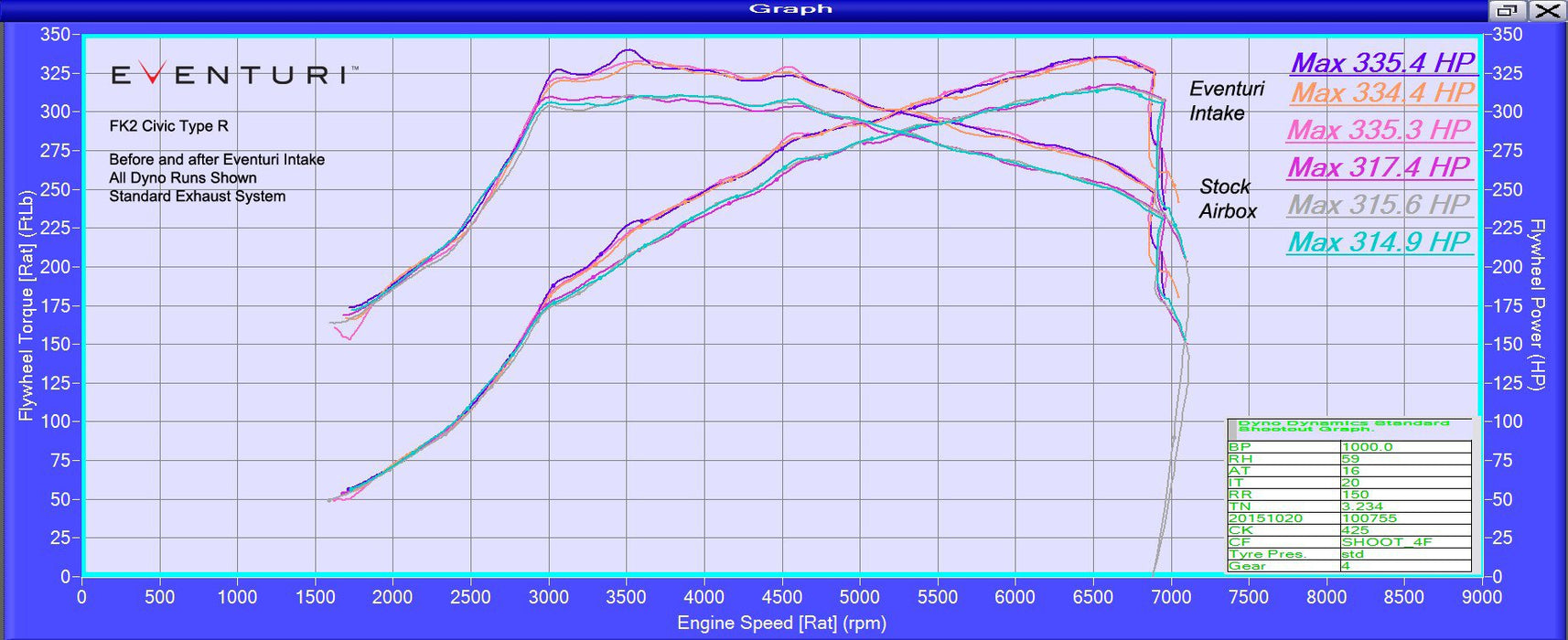

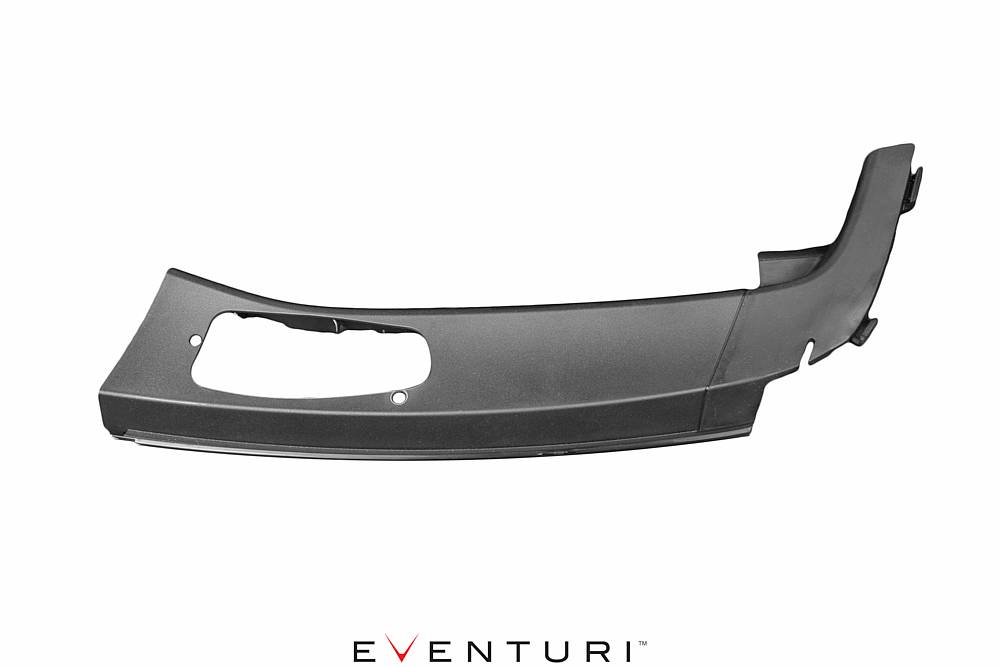

The standard airbox draws in air from the engine bay which, once the engine is up to operating temperature will be very warm. Simply placing and open cone filter with any number of heat shielding in the same place will result in exactly the same problem - the system will pull in hot air and result in a loss of obtainable power. The Eventuri intake system utilises a cold air feed from the panel under the windscreen allowing the filter to be saturated with ambient air regardless of how hot the engine bay becomes. This coupled with the unique Venturi housing for smooth flow results in an immediate gain across the entire RPM range of 18-20hp. The dyno graph shows the comparison between the stock airbox and the Eventuri intake system on a standard car with standard map and exhaust. As can be seen, several runs were recorded to show consistency in power gains against the standard system. The testing was done on the same day back-to-back and temperatures were monitored to ensure consistency.

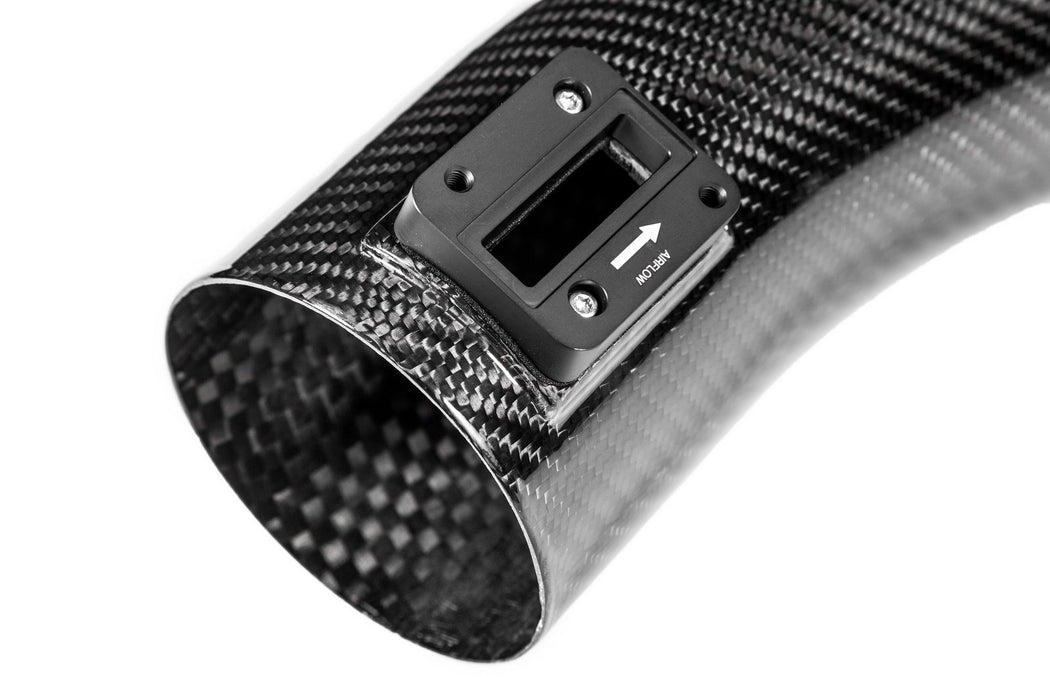

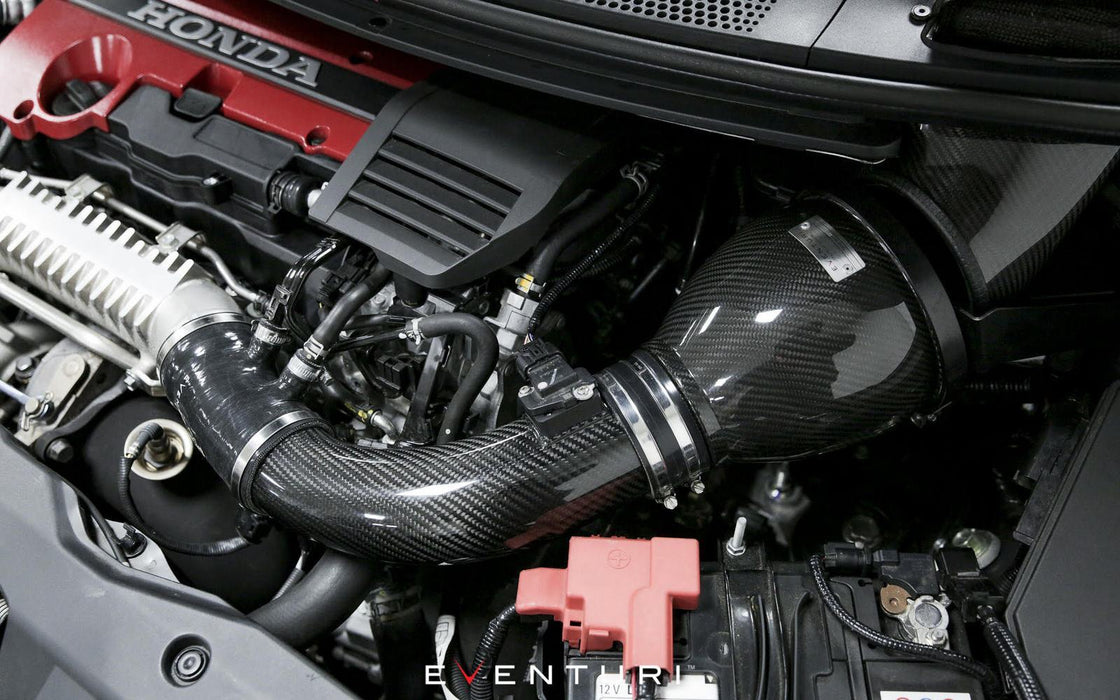

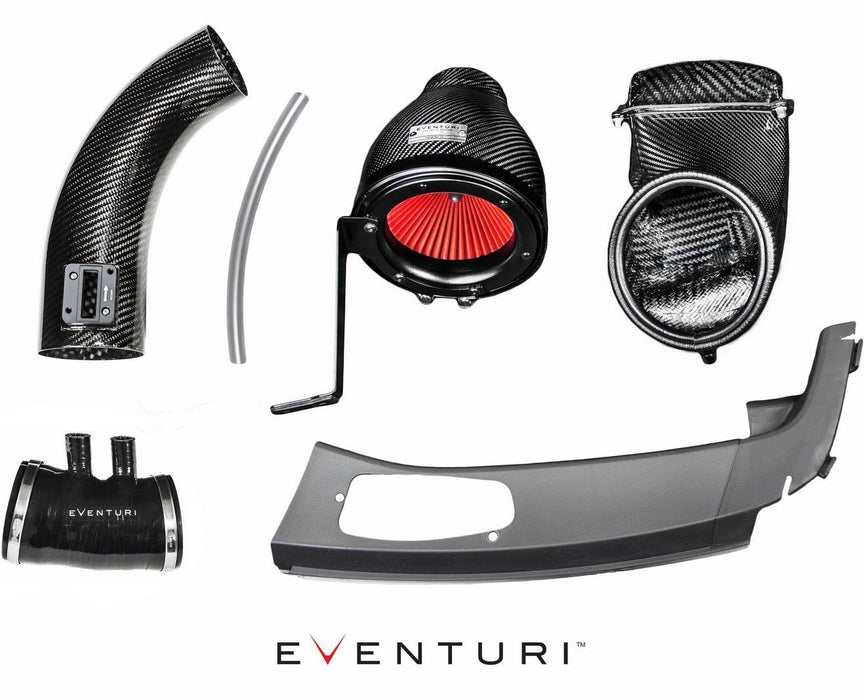

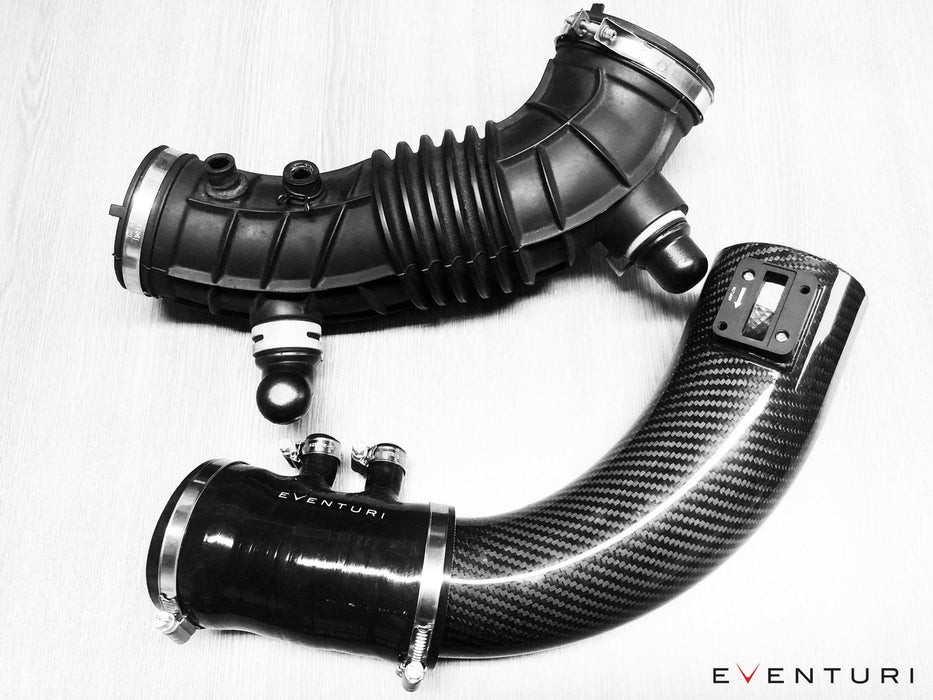

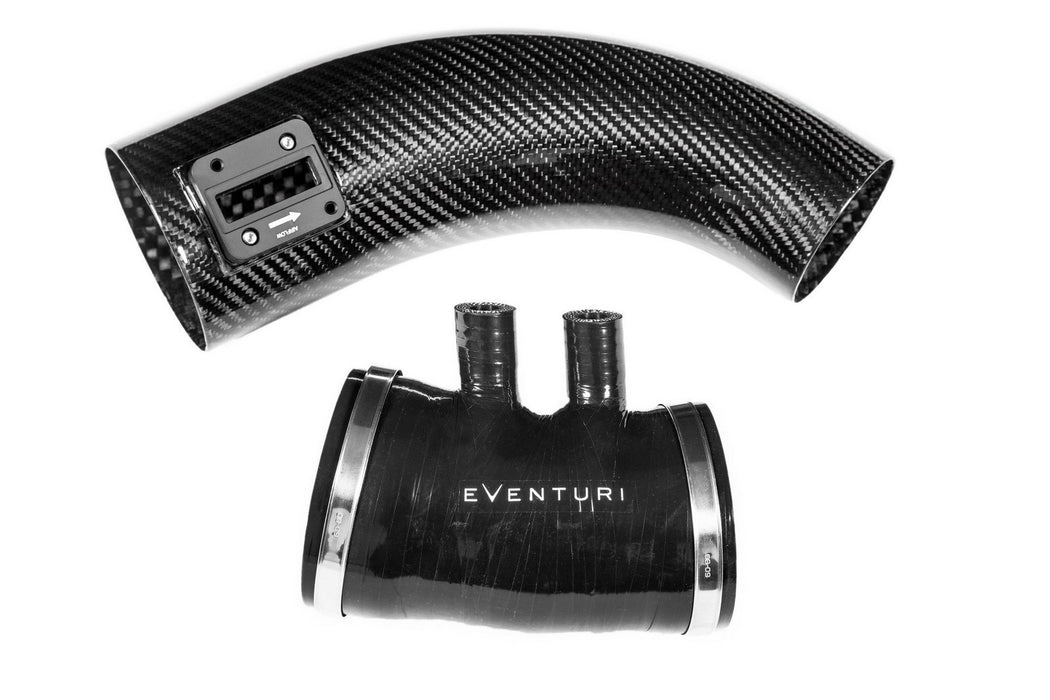

Version 2 intake is an updated version of our original FK2 system which now replaces the stock rubber inlet tube with our carbon tube and custom silicon hose. The new carbon tube also incorporates the MAF sensor and so also replaces our original metal MAF tube from the original Eventuri system. The addition of the carbon tube smooths the path from the Venturi filter housing all the way to the stock turbo inlet tube and the difference is significant in terms of the extra performance gained. The rest of the intake remains the same with our cold air scoop and Venturi filter housing providing smooth airflow and low intake temperatures. By integrating an effective cold air feed, which the stock system lacks and coupling that with our Patented Venturi housing and carbon inlet tube, our intake delivers industry leading results – consistently. Available in Carbon Fibre and Red Kevlar/Carbon Hybrid.

The Eventuri Difference

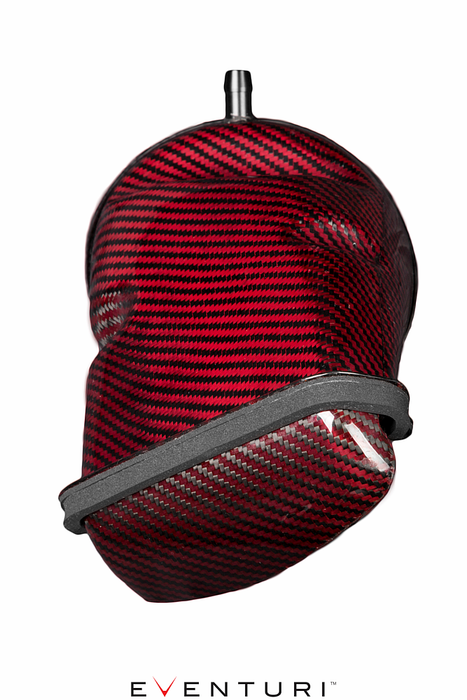

The FK2 Type R V2 Eventuri system uses our Patented Carbon Fibre Housing with our Gen 2 bespoke filter, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect and maintains laminar flow conditions to reduce the drag on the turbo.

Please click here for the Right Hand Drive installation guide.
