AIRTEC MOTORSPORT INTERCOOLER UPGRADE FOR HONDA CIVIC TYPE R FK2

£605.27

AIRTEC’s huge front mount intercooler upgrade for the new Honda Civic Type R FK2

Dyno proven to show a huge reduction in charge temps over standard
60mm to 100mm two-step core design
Hand crafted free flowing end tanks
Lower alloy air scoop
Direct fit with no additional drilling or cutting required
Optional hand crafted big boost pipes

TECHNICAL DATA

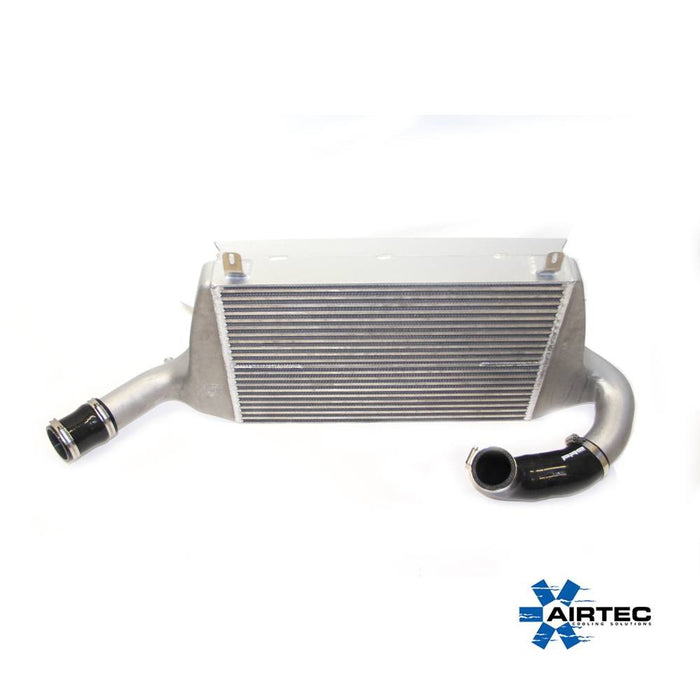

AIRTEC Motorsport front mount intercooler upgrade for the Honda Civic Type R FK2.

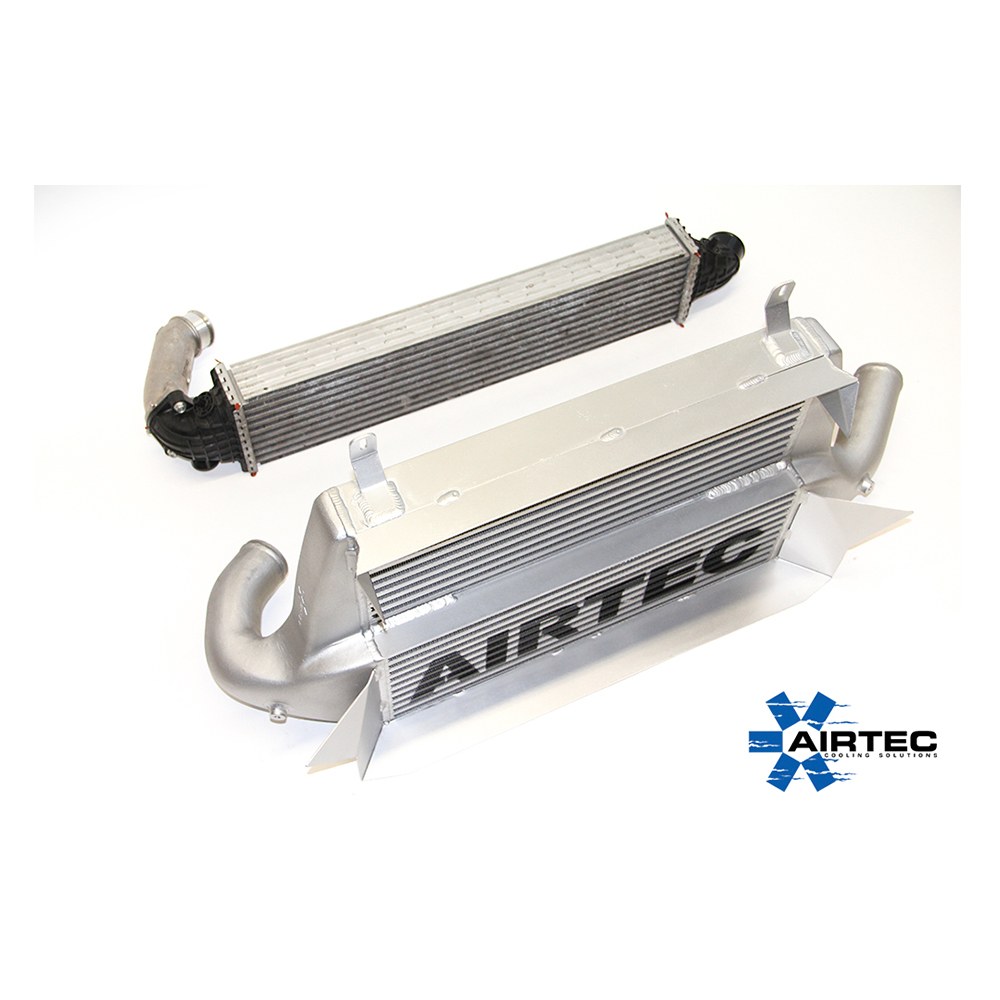

Designed to fit all 2015-2017 Honda Civic Type R models, this freer flowing front mount intercooler set up is a direct replacement for the much smaller, more restrictive OEM set up.

Dyno proven back-to-back testing showed a huge reduction in charge temps over standard (see below).

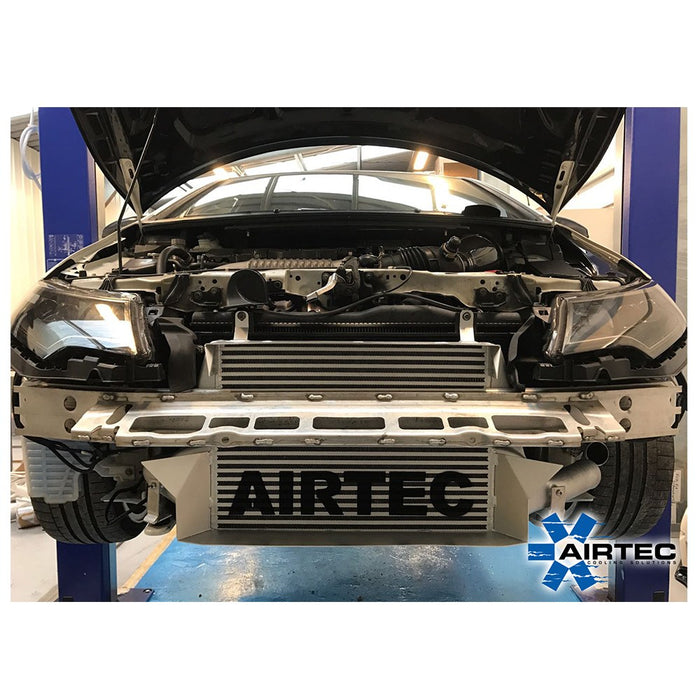

Despite its much greater surface area and volume, the AIRTEC Motorsport intercooler upgrade fits neatly behind the original front bumper and requires no additional drilling or cutting.

The comprehensive fitting kit includes silicone hose connectors for an easy fit, all the correct fixings, full instructions and optional larger diameter boost hoses.



DYNO TESTED

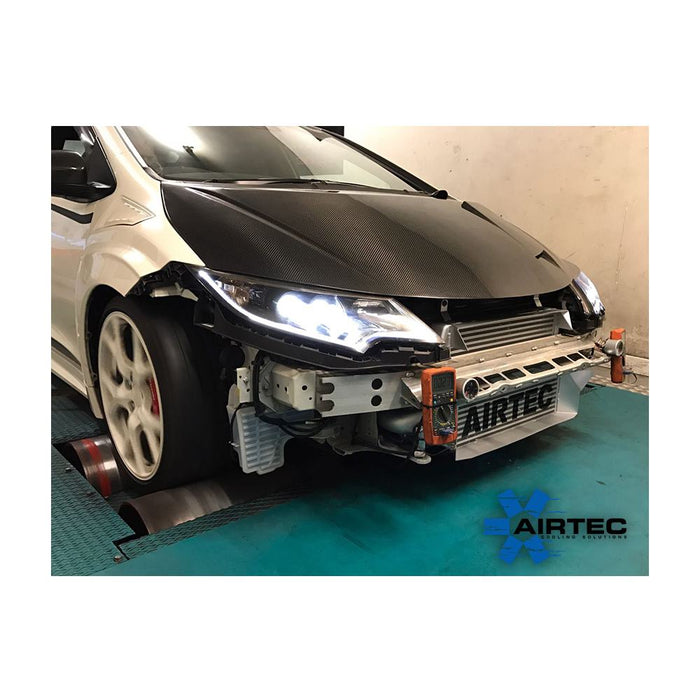

Test results taken at AmD Rolling Road showing charge temps before and after the OEM intercooler and the AIRTEC Motorsport upgrade.
(Tested on Dream Automotive’s FK2 demo car )

Run 1
OEM intercooler
IN – 131  OUT – 60

AIRTEC intercooler
IN – 117  OUT – 16

Run 2
OEM intercooler
IN – 134   OUT – 62

AIRTEC intercooler
IN – 107  OUT – 17

Run 3
OEM intercooler
IN – 132  OUT – 58

AIRTEC intercooler
IN – 120  OUT – 18


Dimensions:
Width: 1,000mm (Including end tanks)

Height: 370mm

Depth: 60mm / 100mm (Stepped design)

Outlet size: 63mm

Features:

  • 60mm to 100mm two-step core design
  • Cast free flowing end tanks
  • Alloy air scoop to help direct air through the core
  • Direct fit, minor trimming needed to bottom under tray
  • Optional hand crafted big boost pipes

Available in pro series black finishes, with or without the AIRTEC logo.
