V2 VNT Boost Controller (Manual)

£116.94

Want to increase or decrease the boost on your variable vane (i.e. VNT/VGT) turbo diesel? Is the factory boost curve erratic and all over the place? Blown an engine with the factory boost control system? Then the V2 is for you!

It’s common knowledge that some engines with vacuum operated ECU controlled VNT/VGT turbos suffer erratic boost behavior, to the point where turbo or engine failures can occur, even on completely stock vehicles. The V2 takes over from the factory ECU control and ensures a stable and repeatable boost curve, which your engine will thank you for!

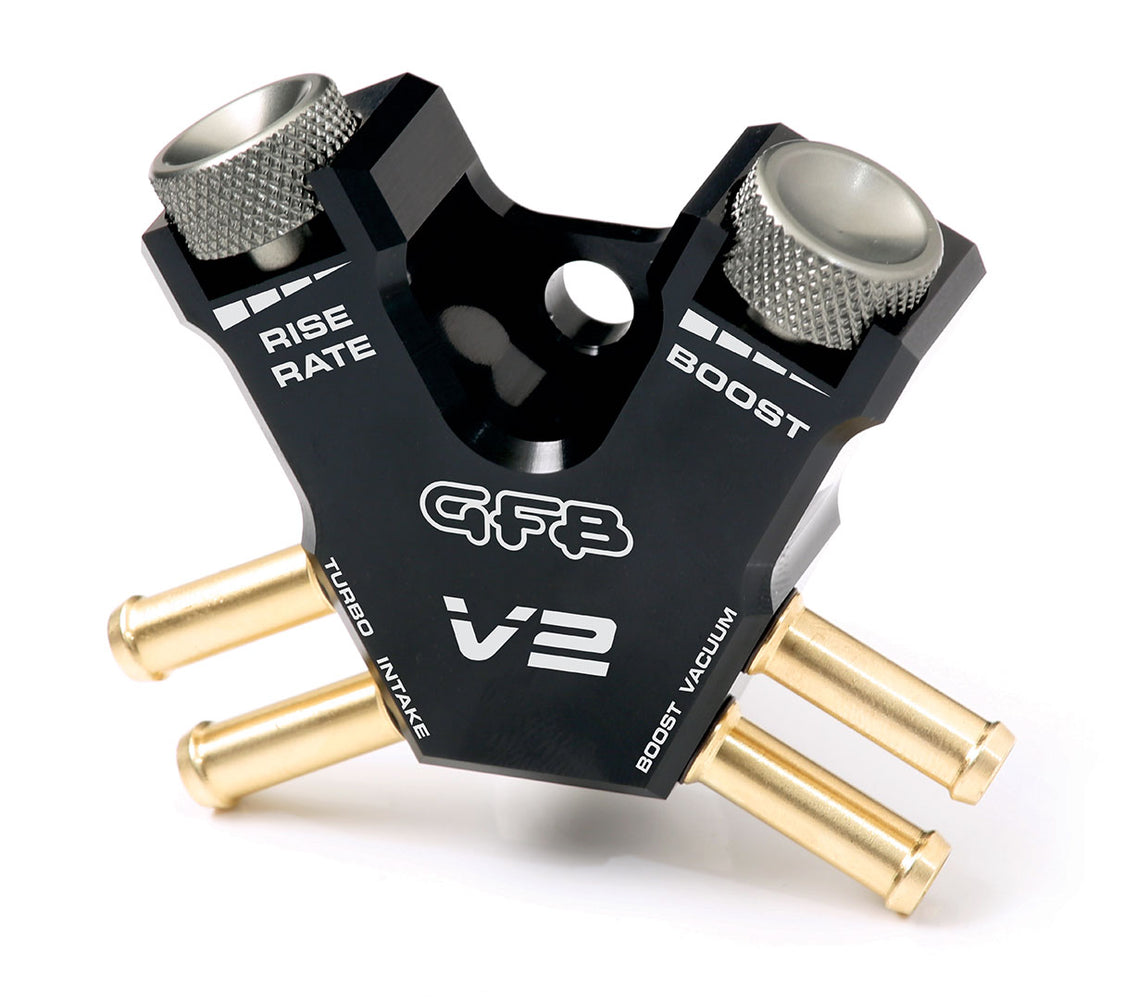

Cleverly packaged within a black anodized CNC-machined 6061 aluminium housing are two individual adjustment dials, each having a separate and unique adjustment function.

This first dial sets the boost pressure, whilst the other is used to adjust the boost rise rate, i.e. how fast the turbo spools, meaning you can tune your boost to suit any driving conditions.



Please Note

Any form of boost control should be considered a tuning tool rather than a bolt-on power adder, and therefore adjustments should be done with knowledge of the limits of the engine/turbo to maximize the performance gains and reliability from using this product.







GFB Manual Boost Controller Features:

  • Repeatable and stable boost curve
  • 100% reliability, zero maintenance
  • Easy to install in minutes
  • Easy to adjust, set-and-forget
  • Precision needle valve bleed system, more stable than “ball-and-spring” types
  • Manufactured in Australia in accordance with ISO 9001

Manual Boost Controllers may lack the extra features of an EBC (Electronic Boost Controller), but they get the job done!

When you need simple, reliable, set-and-forget boost control, a Manual Boost Controller is hard to beat. Installation is as simple as connecting a couple of hoses, and setup is as easy as turning the adjustment until you hit your target. Once that’s done, you can forget about it and drive your car. Being a rugged, mechanical device, it will never vary or fail, no matter how much abuse you can throw at it.

Our Manual Boost Controllers are available in two types, one is suited for conventional pneumatic wastegates, and the other is for use with vacuum-actuated VNT (Variable Nozzle Turbine)/VGT (Variable Geometry Turbine) turbos that are commonly used on diesel engines.
